VALVE SPRING KIT ENDURANCE BEEHIVE

Topstykke & ventiler · Feuling

Ventilfjedersæt, Endurance Beehive

Varenr. FEULING-1105

3.479,00 kr inkl. moms
Klar til afsendelse fra EU-lager (6 stk)

Passer til 400 køretøjer

  • Harley Davidson FLD 1690 2012Type FD2
  • Harley Davidson FLD 1690 2013Type FD2
  • Harley Davidson FLD 1690 ABS 2012Type FD2 · ja
  • Harley Davidson FLD 1690 ABS 2013Type FD2 · ja
  • + 396 flere

Fitment-tjekket: passer delen ikke som angivet, tager vi den retur. Vælg din motorcykel i garagen for at se, om den passer til din.

Endurance Beehive® Valve Springs with Titanium Retainers Not for RH Sportster. Machined from premium-grade hi-tensile chrome silicon single-conical ovate wire Shot-peened with specially processed thermal heat treat and super NexTex® finish for fatigue life needed to exceed high… Læs mere

Beskrivelse fra leverandøren (engelsk)

Endurance Beehive® Valve Springs with Titanium Retainers

Not for RH Sportster.

  • Machined from premium-grade hi-tensile chrome silicon single-conical ovate wire
  • Shot-peened with specially processed thermal heat treat and super NexTex® finish for fatigue life needed to exceed high demands of V-Twin engines
  • Use a much smaller and lighter weight retainer to reduce valve weight and create quicker rev and smoother motion
  • Direct bolt-in replacement up to 0.650" cam lift; no machining or rocker box clearancing required

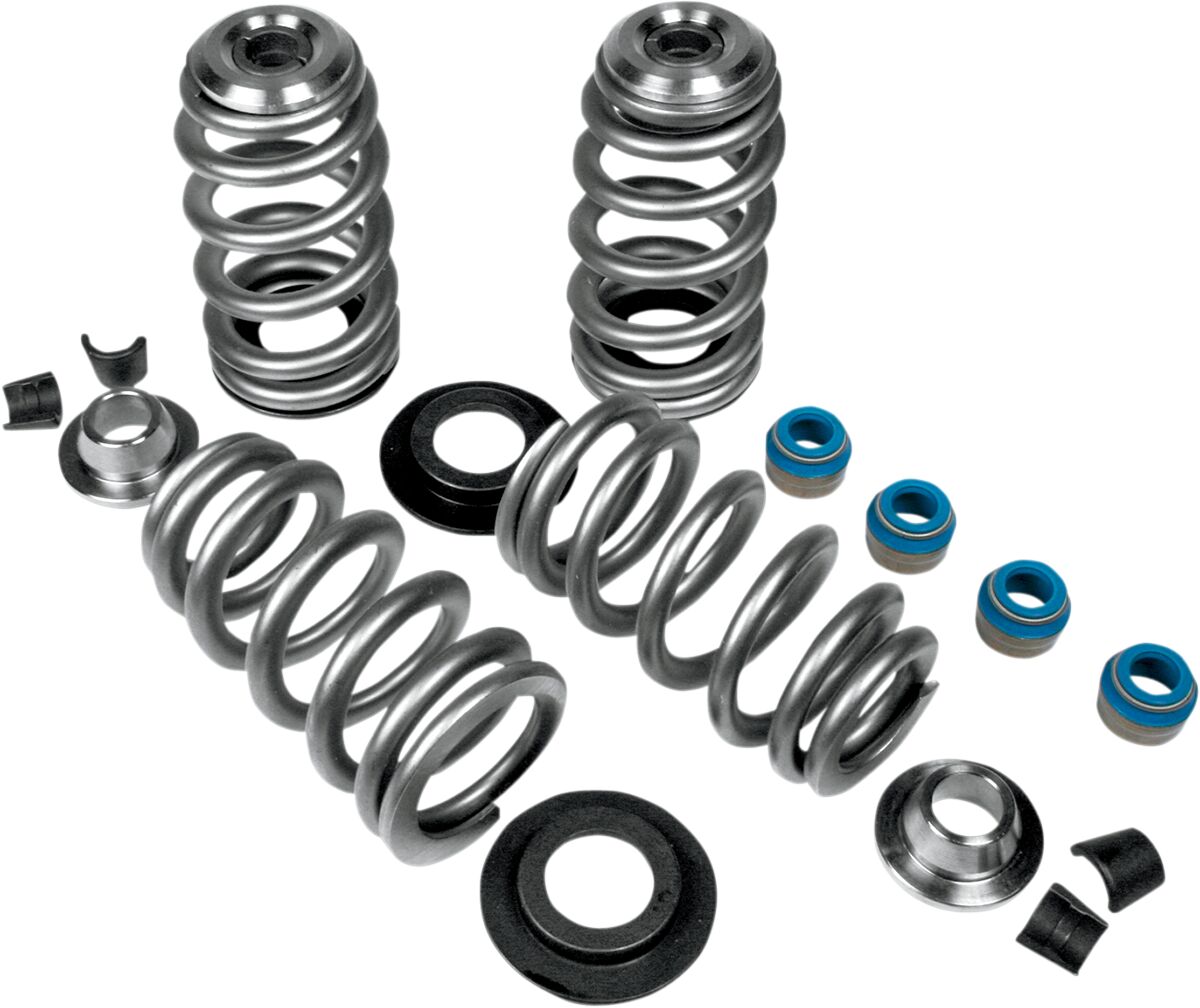

  • Kits include: Endurance BeeHive® valve springs, lightweight 7° super Titanium heat-treated retainers, machined spring seats, seat shims, valve locks and a set of premium Viton® valve seals equipped with spring-loaded valve stem wiper system
  • Made in the USA
  • Seat lb / installed height:
  • 198 lb @ 1.685" (0.535" lift)
  • 194 lb @ 1.703" (0.553" lift)
  • 190 lb @ 1.724" (0.574" lift)
  • 187 lb @ 1.754" (0.604" lift)
  • 185 lb @ 1.780" (0.630" lift)
  • 160 lb @ 1.800" (0.650" lift)
  • 375 lb @ 1.150" Open Height
  • Coil Bind @ 1.100"
  • Must be installed at the correct open height, matching max lift to the open height spec of the valve springs.
  • Feuling® BeeHive® valve spring kits are direct replacement with no machining or rocker box clearance required up to 0.574" lift for '98-'04 Big Twin and '86-'03 XL and up to 0.650" lift for '05-'17 Twin Cam. Larger camshafts require valve guide machining for seal to retainer clearance.
