OIL SYSTEM RS W/C M8

Olie-/vandpumpe · Feuling

Oliesystem RS W/C M8

Varenr. FEULING-7099ST

14.629,00 kr inkl. moms
Skaffevare · leveringstid 5-6 hverdage

Passer til 141 køretøjer

  • Harley Davidson FLH 1868 ABS 2021ja
  • Harley Davidson FLHFB 1868 ABS 2023Type FL3 · ja
  • Harley Davidson FLHR 1750 ABS 2017Type FL3 · ja
  • Harley Davidson FLHR 1750 ABS 2018Type FL3 · ja
  • + 137 flere

Fitment-tjekket: passer delen ikke som angivet, tager vi den retur. Vælg din motorcykel i garagen for at se, om den passer til din.

Race Series® Oil System Packs For M8 Block-off plate PART #0932-0036 required when using gear drive cams. Use with short-travel pushrods PART #0928-0114 on stock base circle camshafts with Feuling short-travel lifters (includes Feuling grinds 405, 465, 472,… Læs mere

Beskrivelse fra leverandøren (engelsk)

Race Series® Oil System Packs For M8

Block-off plate PART #0932-0036 required when using gear drive cams.

Use with short-travel pushrods PART #0928-0114 on stock base circle camshafts with Feuling short-travel lifters (includes Feuling grinds 405, 465, 472, 508, 521 and 592).

  • Includes FUELING® High Flow billet camplate made from 7075 aluminum which is 50% harder and stronger than the factory or FUELING® OE+ camplates
  • Increases oil flow and volume by enlarging the oil pump reservoirs and critical oil passages including matching the oil portholes throughout the camplate to the portholes in the engine case which increases engine oil flow to the lifters, piston cooling jets, crankshaft and rod bearings
  • FUELING® oil pumps are bench tested, the relief valve is seated and sealed to a minimum of 30 psi with full pop off at 55-60 psi
  • Increased oil volume from the larger gears and properly sized passages along with the pressure relief valve seat and seal from these oil pumps is essential for proper oiling system function
  • FUELING® oil pump and camplate combination eliminate common pressure and scavenge issues associated with the factory oiling systems
  • FUELING® M-Eight oil pumps have the groove machined on the back cover to accept the factory crank bearing seal
  • Quieter and smoother engine operation
  • Increase oil pressure, scavenge volume and engine oil flow
  • 42% more scavenge volume with port sizing, matched passages and holes to the engine case
  • 68% more oil volume to the crankshaft and connecting rod bearing
  • Engine temperatures run 15°-25° cooler
  • Oil temperatures run 15°-30° cooler
  • 10-30 lbs more psi of oil pressure
  • M-Eight Water-Cooled™ motor oil pump has 30% more pressure gear volume over stock and 53% more scavenge gear volume over stock
  • M-Eight Oil-Cooled™ motor pump has 27% more pressure and scavenge gear volume over stock
  • Eliminate wet sumping, blow by and oily air cleaners
  • Test results show 2 horsepower gain and 2 ft./lb. of torque gain to the rear wheel on M-Eight

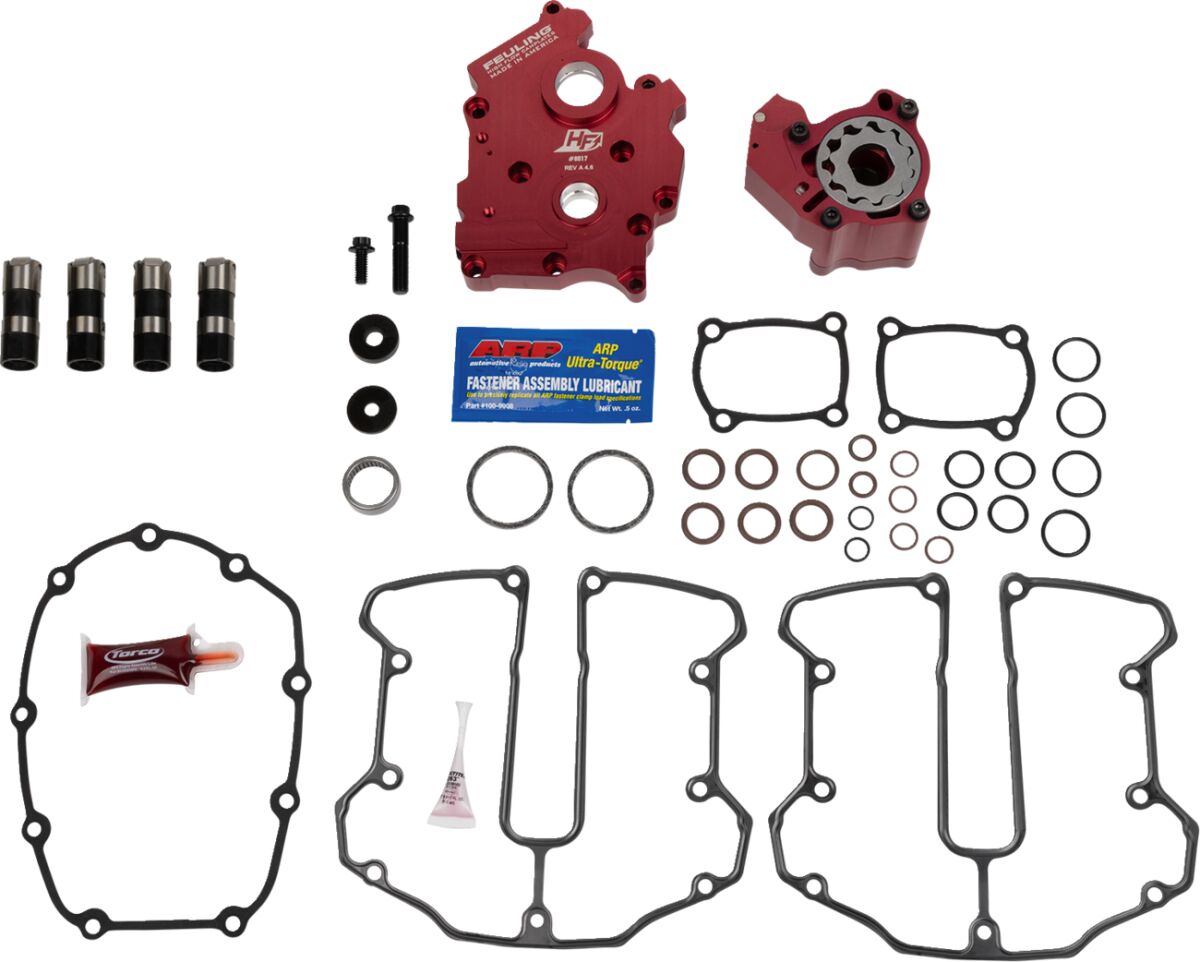

  • Includes a Race Series® oil pump, Race Series® full-travel or short- travel hydraulic roller lifters, High Flow camplate and cam installation kit, cam bearing, cam/​crank bolts and washers, engine and fastener assembly lube
  • Billet 7075 aluminum oil pump is 50% harder and stronger than the factory pump; holds tighter tolerances under temperature
  • Race Series® oil pumps feature increased scavenge side kidney port volume over HP+ oil pumps
  • Race Series® full-travel hydraulic lifters have a full .200” of total travel designed with a slower bleed down rate to handle heavy valve spring pressures, increase engine rpm before valve float and feature increased roller clearance for steep ramped camshafts and clearance for the M-Eight front exhaust camshaft lobe flange
  • Race Series® short-travel hydraulic lifters have .115” of total travel and will increase rpm by decreasing valve float and valve-train harmonics while maintaining a quiet engine
  • The travel reduction reduces the amount of oil that is required to fill the inside of the lifter which reduces oil aeration inside the lifter on steep, fast action high lift camshaft lobes
  • Made in the USA
  • Optional FUELING® X ARP bolt kit available for the high flow camplate PART #0932-0192 and HP+ or RS oil pump combo. See PART #2401-0993, optional ARP oil pump bolts do not use washers.
  • FUELING® test results show as much as 50% reduction of engine sump oil level.
  • M-Eight engines must check clearance on front exhaust lifter to camshaft flange fit.
