Fitment-tjekket: passer delen ikke som angivet, tager vi den retur. Vælg din motorcykel i garagen for at se, om den passer til din.
Replacement Piston Rings Kit Includes: • 2x Top Compression Rings • 2x Second Compression Rings • 2x Expander Rings • 4x Steel Rails Includes top compression rings, second compression rings, and oil control rings Top Compression Rings are… Læs mere
Beskrivelse fra leverandøren (engelsk)

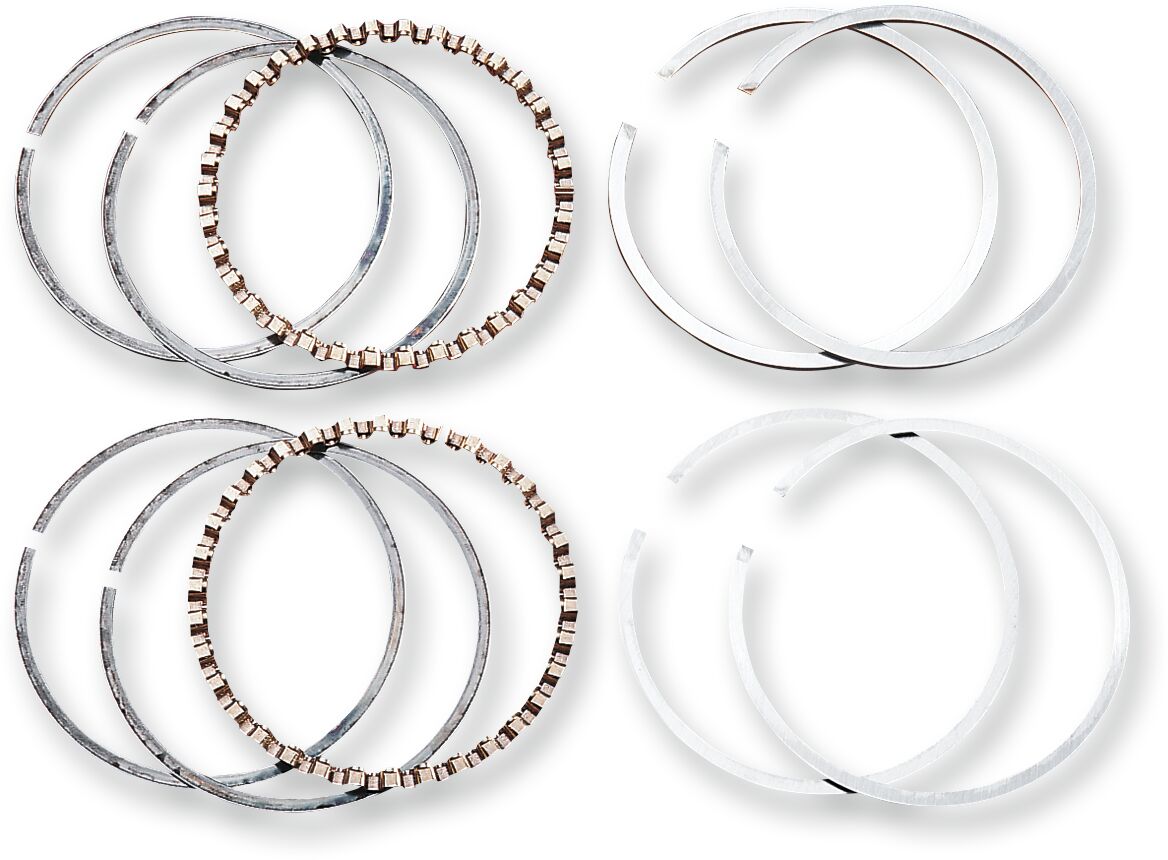

Replacement Piston Rings
Kit Includes:
• 2x Top Compression Rings
• 2x Second Compression Rings
• 2x Expander Rings
• 4x Steel Rails
Includes top compression rings, second compression rings, and oil control rings
Top Compression Rings are Barrel Face
Helps in the the heat transfer process between the piston and cylinder wall
Controls combustion chamber gases allowing the piston to transfer the energy of the expanding combustion gases, to the crankshaft
Second Compression Ring are Reverse Torsional Taper Face
Promotes side sealing that prevents oil from being forced under and behind the ring resulting in better oil economy
Reverse twist ring along with a taper-machined ring face duplicates the OD bottom side scraping edge of a positive twist torsional ring
Oil Control Rings are Three Piece Flex Vent
Three-piece design allows rails to be manufactured with a small cross sectional area for better conformability to bore
Provides uniform pressure through four steel rails and two expanders assuring positive oil control
Made in the USA
Due to the thermal conductivity and design of KB pistons, special attention is required to the top ring end gap. Please read instructions furnished with piston for correct ring installation.
Includes enough rings for two pistons (unless noted).
Two rings per groove, except for the rails that will be two rail rings per one expander ring.
Passer til 267 køretøjer · leverandørens egen angivelse
Harley Davidson267 køretøjer · 51 modeller
ModelTypekodeÅrgang
FLH 13402 udgaver1984–85
–1984–85
FLH1984
FLHR 1340FLT1994–98
FLHRCI 1340 EFIFLT1998
FLHRI 1340 EFIFLT1996–97
FLHS 1340FLT1987–93
FLHT 1340FLT1983, 1986–87, 1995–98
FLHTC 1340FLT1983–98
FLHTCI 1340 EFIFLT1996–98
FLHTCU 1340FLT1989–97
FLHTCUI 1340 EFI2 udgaver1995–98
–1995
FLT1996–98
FLHX 1340–1984–85
FLST 1340FXST1986–90
FLSTC 1340FXST1988–99
FLSTF 1340FXST1990–99
FLSTN 1340FXST1993–96
FLSTS 1340FXST1997–99
FLT 1340FLT1984
FLTC 1340FLT1983–91
FLTCU 13402 udgaver1989–96
FLT1989–93
–1994–96
FLTRI 1340 EFI–1998
FXD 1340FXD1995–98
FXDB 1340FXD1991–92
FXDC 1340FXD1992
FXDL 1340FXD1993–98
FXDS-CON 1340FXD1994–98
FXDWG 1340FXD1993–98
FXE 1340FX1983–84
FXLR 1340FXR1987–94
FXR2 1340–1999
FXR3 1340–1999
FXR4 1340–2000
FXR 1340FXR1986–94
FXR 1340 IIFXR1983
FXRC 1340FXR1985, 1987
FXRD 1340FXR1986
FXRDG 1340FXR1984
FXRP 13402 udgaver1984, 1989
–1984
FXR1989
FXRS 1340FXR1984–92
FXRS CON. 1340FXR1990–93
FXRS-SP 1340FXR1986–93
FXRT 1340FXR1984–92
FXSB 1340FXST1985
FXST 1340FXST1985–90, 1999
FXSTB 1340FXST1999
FXSTC 1340FXST1986–99
FXSTS 1340FXST1988–99
FXSTSB 1340FXST1995–97
FXWG 1340FXWG1984–86
XL 1200 C2 udgaver1996–2003
XL/21996–98
XL11999–2003
XL 1200 S2 udgaver1996–2003
XL/21996–98
XL11999–2003
XLH 12002 udgaver1988–2003
XL/21988–99
XL12000–03
M58-varenummer
HASTINGS-WG1010297|2M6164030
Hastings varenummer
WG1010297|2M6164030
Bore - oversize
+0,030"
Bore size
3,498"
Riding style
Street
Ring material
Moly Coated
