Replacement Piston Rings Kit Includes: • 2x Top Compression Rings • 2x Second Compression Rings • 2x Expander Rings • 4x Steel Rails Includes top compression rings, second compression rings, and oil control rings Top Compression Rings are… Læs mere
Beskrivelse fra leverandøren (engelsk)

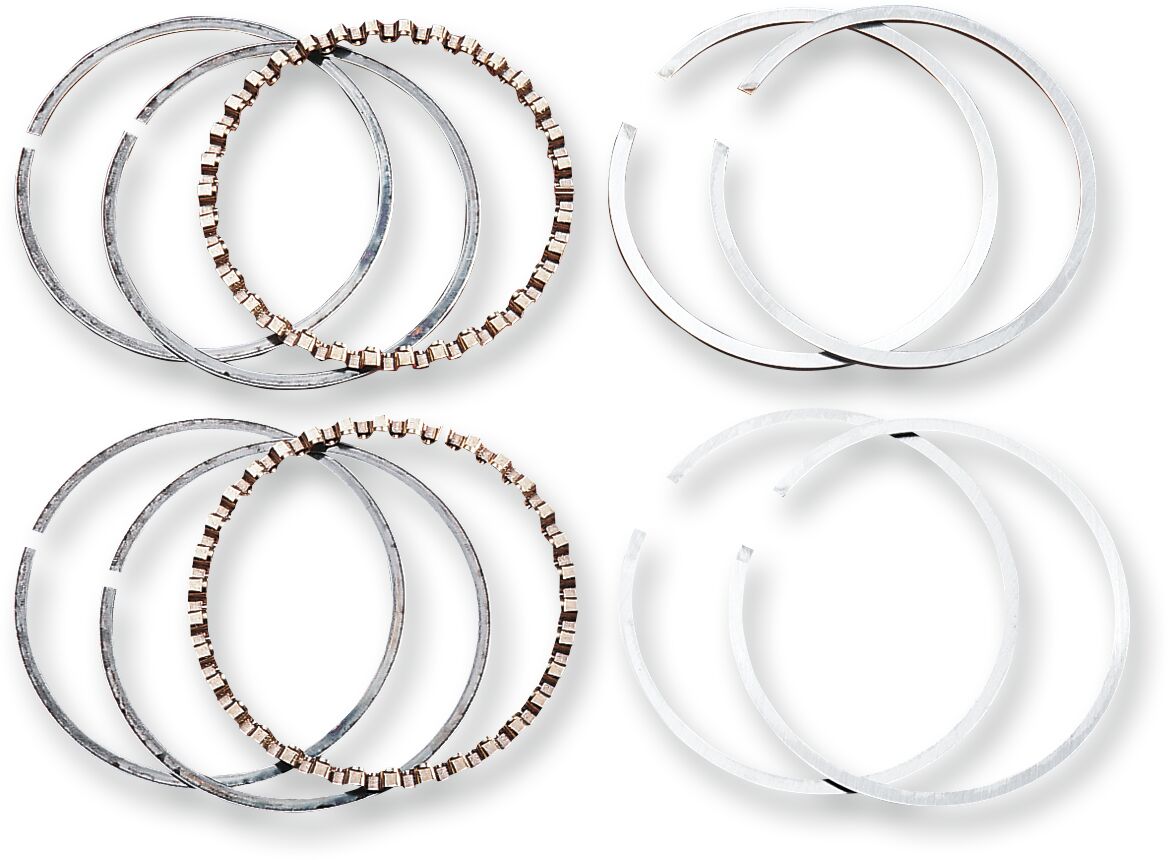

Replacement Piston Rings
Kit Includes:
• 2x Top Compression Rings
• 2x Second Compression Rings
• 2x Expander Rings
• 4x Steel Rails
Includes top compression rings, second compression rings, and oil control rings
Top Compression Rings are Barrel Face
Helps in the the heat transfer process between the piston and cylinder wall
Controls combustion chamber gases allowing the piston to transfer the energy of the expanding combustion gases, to the crankshaft
Second Compression Ring are Reverse Torsional Taper Face
Promotes side sealing that prevents oil from being forced under and behind the ring resulting in better oil economy
Reverse twist ring along with a taper-machined ring face duplicates the OD bottom side scraping edge of a positive twist torsional ring
Oil Control Rings are Three Piece Flex Vent
Three-piece design allows rails to be manufactured with a small cross sectional area for better conformability to bore
Provides uniform pressure through four steel rails and two expanders assuring positive oil control
Made in the USA
Due to the thermal conductivity and design of KB pistons, special attention is required to the top ring end gap. Please read instructions furnished with piston for correct ring installation.
Includes enough rings for two pistons (unless noted).
Two rings per groove, except for the rails that will be two rail rings per one expander ring.
Passer til 405 køretøjer · leverandørens egen angivelse
Harley Davidson405 køretøjer · 66 modeller
ModelTypekodeÅrgang
EL 1000–1948–52
FL 1200–1948–64, 1970–77
FLH 12002 udgaver1958–64, 1970–80
–1958–64, 1970–73
FLH1974–80
FLH 13402 udgaver1979–84
FLH1979–84
–1984
FLHR 1340FLT1994–98
FLHRCI 1340 EFIFLT1998
FLHS 1200–1980
FLHS 1340FLT1987–93
FLHT 1340FLT1983, 1986–87
FLHTC 1340FLT1983–98
FLHTCI 1340 EFIFLT1996–98
FLHTCU 1340FLT1989–97
FLHTCUI 1340 EFI2 udgaver1995–98
–1995
FLT1996–98
FLHX 1340–1984
FLST 1340FXST1986–90
FLSTC 1340FXST1988–99
FLSTF 1340FXST1990–99
FLSTN 1340FXST1993–95
FLSTS 1340FXST1997–99
FLTC 1340FLT1983–91
FLTCU 13402 udgaver1989–96
FLT1989–93
–1994–96
FLTRI 1340 EFI–1998
FX 12002 udgaver1971–78
–1971–77
FX1978
FXB 1340FXB1980–82
FXD 1340FXD1995–98
FXDB 1340FXD1991–92
FXDC 1340FXD1992
FXDG 1340–1983
FXDL 1340FXD1993–98
FXDS-CON 1340FXD1994–98
FXDWG 1340FXD1993–98
FXE 12002 udgaver1974–80
–1974–77
FX1978–80
FXE 1340FX1981–84
FXEF 1200FX1979
FXEF 1340FX1979–81
FXLR 1340FXR1987–94
FXR 1340FXR1986–94
FXR 1340 IIFXR1982–83
FXRC 1340FXR1985, 1987
FXRD 1340FXR1986
FXRDG 1340FXR1984
FXRS 1340FXR1984–92
FXRS 1340 IIFXR1982
FXRS CON. 1340FXR1990–93
FXRS-SP 1340FXR1988–93
FXRT 1340FXR1984–92
FXS 12002 udgaver1977–79
–1977
FX1978–79
FXS 1340FX1979–82
FXSB 1340FXST1984
FXST 1340FXST1985–90, 1999
FXSTB 1340FXST1999
FXSTC 1340FXST1986–98
FXSTS 1340FXST1988–99
FXSTSB 1340FXST1995–97
FXWG 1340FXWG1980–86
XL 883XL22005–08
XL 883 C3 udgaver1999–2003, 2007–09
XL/21999
XL12000–03
XL22007–09
XL 883 L2 udgaver2005–17
XL22005–16
XL2; XL2-R2017
XL 883 L ABS2 udgaver2014–17
XL22014–16
XL2; XL2-R2017
XL 883 N2 udgaver2009–17
XL22009–16
XL2; XL2-R2017
XL 883 N ABS2 udgaver2014–17
XL22014–16
XL2; XL2-R2017
XL 883 R2 udgaver2002–03, 2006–07
XL12002–03
XL22006–07
XL 1200 C2 udgaver1996–2003
XL/21996–98
XL11999–2003
XL 1200 S2 udgaver1996–2003
XL/21996–98
XL11999–2003
XLH 8833 udgaver1986–2003
XL/21986–99
–1994–95
XL12000–03
XLH 12002 udgaver1988–2003
XL/21988–99
XL12000–03
M58-varenummer
HASTINGS-WG1010312|2M6127
Hastings varenummer
WG1010312|2M6127
Bore - oversize
Standard
Bore size
3,498"
Riding style
Street
Ring material
Moly Coated
Style
Performance Replacement
