Fitment-tjekket: passer delen ikke som angivet, tager vi den retur. Vælg din motorcykel i garagen for at se, om den passer til din.
Connecting Rod Kit Connecting Rod Big End I.D. 29.000 mm Connecting Rod Big End Width: 17.000 mm Connecting Rod Center-to-Center: 110.000 mm Connecting Rod Small End I.D. 21.000 mm Connecting Rod Small End Width: 17.970 mm Thrust Washer… Læs mere
Beskrivelse fra leverandøren (engelsk)

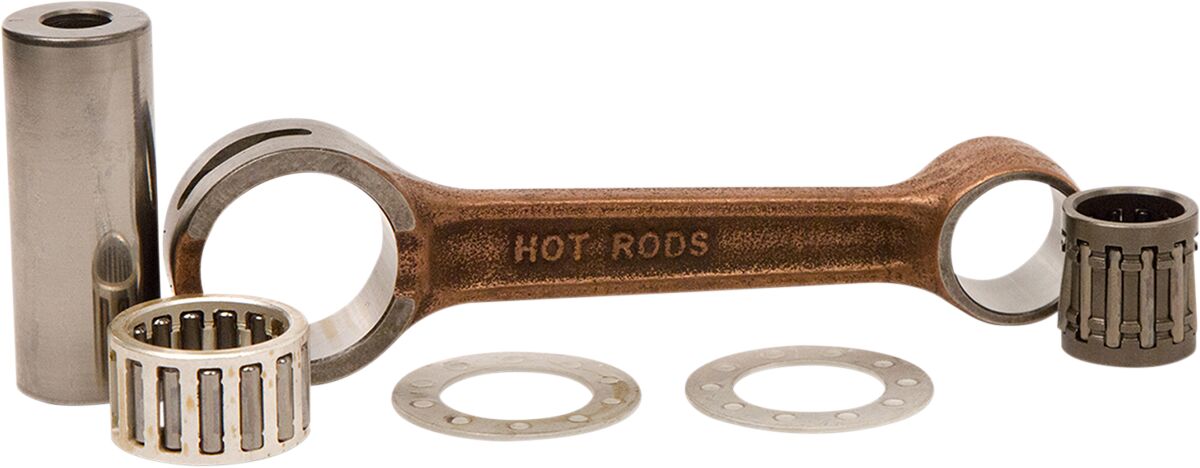

Connecting Rod Kit
Connecting Rod Big End I.D. 29.000 mm
Connecting Rod Big End Width: 17.000 mm
Connecting Rod Center-to-Center: 110.000 mm
Connecting Rod Small End I.D. 21.000 mm
Connecting Rod Small End Width: 17.970 mm
Thrust Washer Thickness: 1.000 mm
Pin Length: 56.400 mm
Kit Includes:
• Connecting Rod
• Crank Pin
• Crank Pin Bearing
• Wrist Pin Bearing
• Thrust Washers
Heavy-duty OE replacement connecting rods
Certified 8620 AISI steel provides superior strength
Crankpins are manufactured from hot-rolled ASTM 4115 and case hardened to level of 58-62Rc
Features the latest in caged needle roller bearing designs for high rpm longevity
Uniquely designed big end uses strategically located side scalloping and vent slots to minimize bearing race distortion at high rpm
Small ends are double drilled to supply extra lubrication and cooling to the wrist pin bearing, which is especially important when the piston crown is close to the wrist pin bearing
Shot-peened to eliminate surface stress risers and to smoothly blend together the rod forging's radiuses
Double honing produces an ultra-round bearing surface for reliability at high rpm
Most rod assemblies are sold complete with rod, crank pin, crank pin bearing, top-end bearing and silver-coated bronze phosphor thrust washers
Made in the USA
Compatible with Hot Rods and OE crankshafts.
Passer til 27 køretøjer · leverandørens egen angivelse
