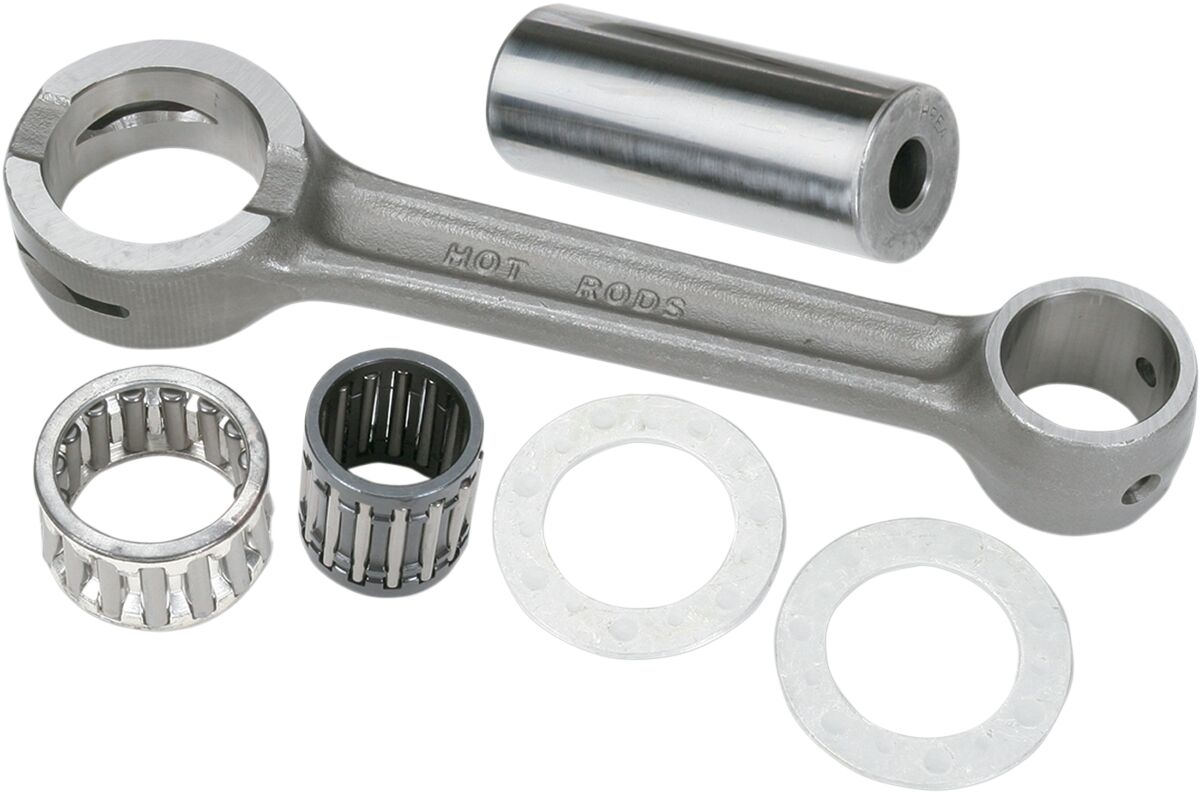

HOT RODS CONNECTING ROD KAWASAKI

Plejlstang · Hot Rods

Plejlstang til Kawasaki

Varenr. HOT RODS-8148

1.729,00 kr inkl. moms
Skaffevare · leveringstid 5-6 hverdage

Passer til 19 køretøjer

  • KAWASAKI KX 500 B 1985Type KX500B
  • KAWASAKI KX 500 B 1986Type KX500B
  • KAWASAKI KX 500 C 1987Type KX500C
  • KAWASAKI KX 500 D 1988Type KX500D
  • + 15 flere

Fitment-tjekket: passer delen ikke som angivet, tager vi den retur. Vælg din motorcykel i garagen for at se, om den passer til din.

Connecting Rod Kit Connecting Rod Big End I.D. 33.000 mm Connecting Rod Big End Width: 21.970 mm Connecting Rod Center-to-Center: 145.000 mm Connecting Rod Small End I.D. 24.000 mm Connecting Rod Small End Width: 21.970 mm Thrust Washer… Læs mere

Erstatter originalnummer 6

  • 13032-1184
  • 13044-4077
  • 13044-5048
  • 13044-5072
  • 13044-5076
  • 13044-5077

Beskrivelse fra leverandøren (engelsk)

Connecting Rod Kit

Connecting Rod Big End I.D. 33.000 mm

Connecting Rod Big End Width: 21.970 mm

Connecting Rod Center-to-Center: 145.000 mm

Connecting Rod Small End I.D. 24.000 mm

Connecting Rod Small End Width: 21.970 mm

Thrust Washer Thickness: 1.000 mm

Pin Length: 54.400 mm

Kit Includes:

• Connecting Rod

• Crank Pin

• Crank Pin Bearing

• Wrist Pin Bearing

• Thrust Washers

  • Heavy-duty OE replacement connecting rods
  • Certified 8620 AISI steel provides superior strength
  • Crankpins are manufactured from hot-rolled ASTM 4115 and case hardened to level of 58-62Rc
  • Features the latest in caged needle roller bearing designs for high rpm longevity
  • Uniquely designed big end uses strategically located side scalloping and vent slots to minimize bearing race distortion at high rpm
  • Small ends are double drilled to supply extra lubrication and cooling to the wrist pin bearing, which is especially important when the piston crown is close to the wrist pin bearing
  • Shot-peened to eliminate surface stress risers and to smoothly blend together the rod forging's radiuses
  • Double honing produces an ultra-round bearing surface for reliability at high rpm
  • Most rod assemblies are sold complete with rod, crank pin, crank pin bearing, top-end bearing and silver-coated bronze phosphor thrust washers
  • Made in the USA
  • Compatible with Hot Rods and OE crankshafts.
