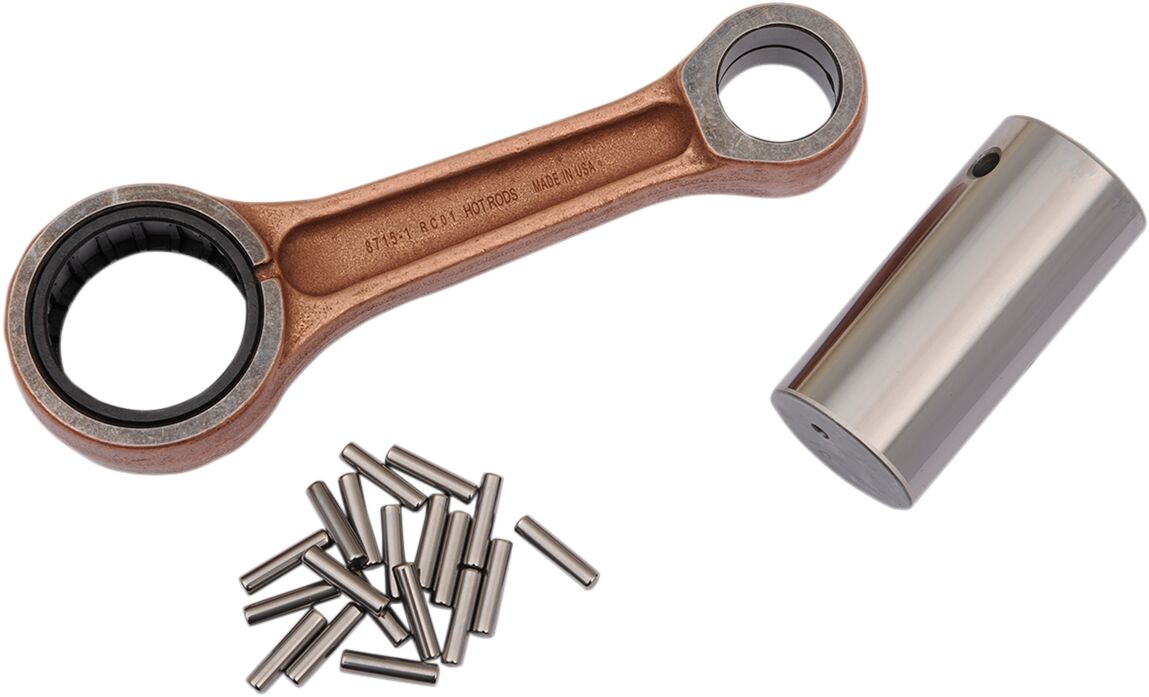

CONNECTING ROD

Plejlstang · Hot Rods

Plejlstang

Varenr. HOT RODS-8715

2.619,00 kr inkl. moms
Klar til afsendelse fra EU-lager (3 stk) · leveringstid 5-6 hverdage

Passer til 35 køretøjer

  • POLARIS ATP 500 HO 4X4 2004Type JD50
  • POLARIS ATP 500 HO 4X4 2005Type JD50
  • POLARIS HAWKEYE 400 HO 2x4 2011Type MB46
  • POLARIS HAWKEYE 400 HO 2x4 2012Type MB46
  • + 31 flere

Fitment-tjekket: passer delen ikke som angivet, tager vi den retur. Vælg din motorcykel i garagen for at se, om den passer til din.

Connecting Rod Kit Connecting Rod Big End I.D. 43.000 mm Connecting Rod Big End Width: 22.000 mm Connecting Rod Center-to-Center: 127.500 mm Connecting Rod Small End I.D. 23.000 mm Connecting Rod Small End Width: 22.000 mm Pin Length:… Læs mere

Beskrivelse fra leverandøren (engelsk)

Connecting Rod Kit

Connecting Rod Big End I.D. 43.000 mm

Connecting Rod Big End Width: 22.000 mm

Connecting Rod Center-to-Center: 127.500 mm

Connecting Rod Small End I.D. 23.000 mm

Connecting Rod Small End Width: 22.000 mm

Pin Length: 71.000 mm

Kit Includes:

• Connecting Rod

• Crank Pin

• Crank Pin Bearing

  • Heavy-duty OE replacement connecting rods
  • Certified 8620 AISI steel provides superior strength
  • Crankpins are manufactured from hot-rolled ASTM 4115 and case hardened to level of 58-62Rc
  • Features the latest in caged needle roller bearing designs for high rpm longevity
  • Uniquely designed big end uses strategically located side scalloping and vent slots to minimize bearing race distortion at high rpm
  • Small ends are double drilled to supply extra lubrication and cooling to the wrist pin bearing, which is especially important when the piston crown is close to the wrist pin bearing
  • Shot-peened to eliminate surface stress risers and to smoothly blend together the rod forging's radiuses
  • Double honing produces an ultra-round bearing surface for reliability at high rpm
  • Most rod assemblies are sold complete with rod, crank pin, crank pin bearing, top-end bearing and silver-coated bronze phosphor thrust washers
  • Made in the USA
  • Compatible with Hot Rods and OE crankshafts.
