585G Gear Drive Camshaft Kit Designed for 88/96/103/110 cubic-inch engines with compression ratios from 10.0:1 to 10.5:1 Reverses the rear cam's direction of rotation, providing additional operating clearance between cam lobes making higher cam lifts possible Increases valve… Læs mere
Beskrivelse fra leverandøren (engelsk)

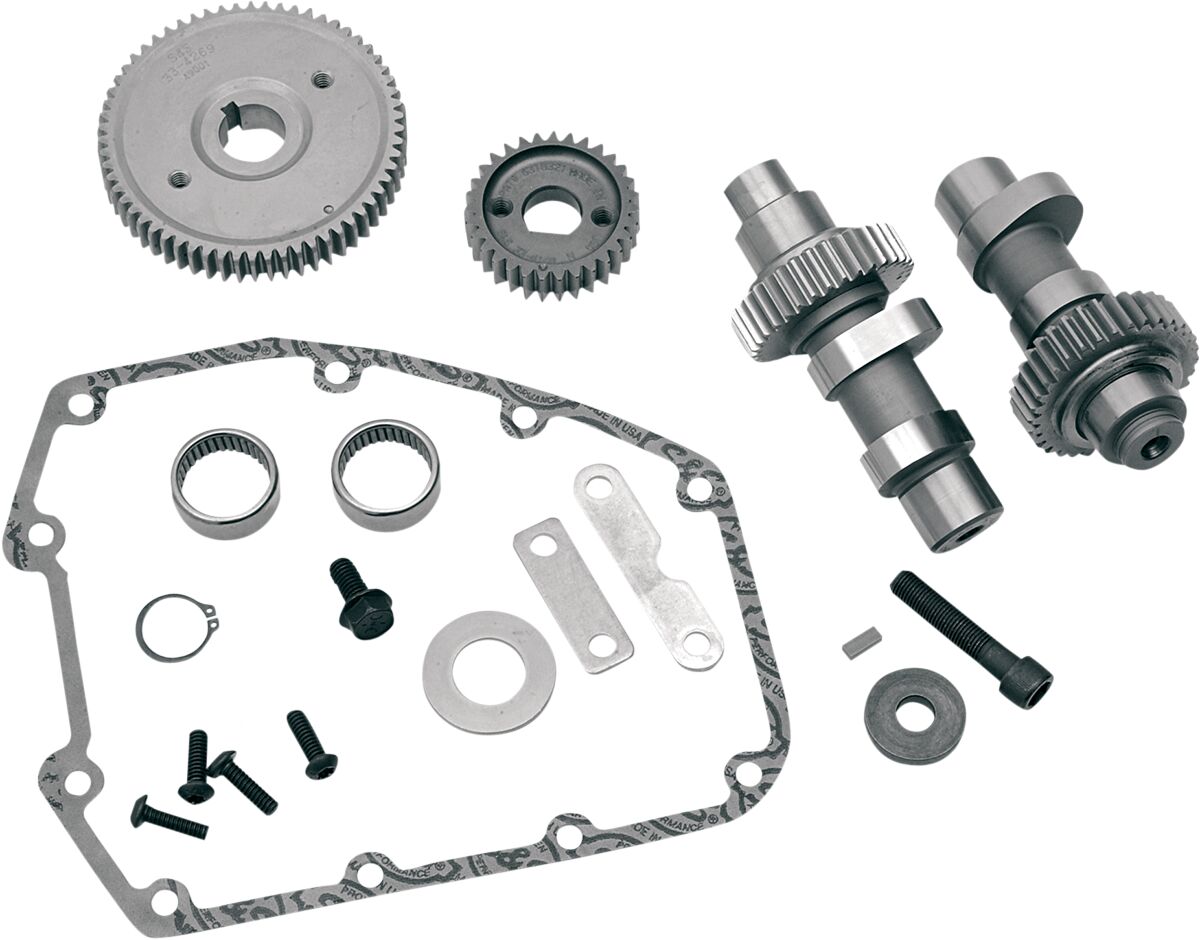

585G Gear Drive Camshaft Kit
Designed for 88/96/103/110 cubic-inch engines with compression ratios from 10.0:1 to 10.5:1
Reverses the rear cam's direction of rotation, providing additional operating clearance between cam lobes making higher cam lifts possible
Increases valve timing accuracy by eliminating chain lash and loosely fit stock chain drive
Material must be removed from inner surface of the stock gear cover to install
3500-6000 rpm for 88" to 103" engines and 2500-5500 rpm for larger engines
A hydraulic press and other professional level tool are required for installation
S&S recommends that adjustable pushrod/cover get be used
Cam bearings and gaskets must be replaced when installing new cams
Kit includes camshafts, inner gears, outer gears, inner bearings, outer bearings, gasket and instructions
Installer must check coil bind, valve to valve clearance and valve to piston clearance.
Due to the inherent characteristics of gear drives, more valve train noise may occur.
Made in the USA
Passer til 354 køretøjer · leverandørens egen angivelse
Harley Davidson354 køretøjer · 142 modeller
ModelTypekodeÅrgang
FLD 1690FD22012–13
FLD 1690 ABSFD22012–13, 2016
FLHR 15842 udgaver2007–11
FL12007–08
FL22009–11
FLHR 1584 ABS2 udgaver2008–11
FL12008
FL22009–11
FLHR 16902 udgaver2012–15
FL22012–14
FL32015
FLHR 1690 ABS2 udgaver2012–16
FL22012–14
FL32015–16
FLHRC 15842 udgaver2007–10
FL12007–08
FL22009–10
FLHRC 1584 ABS2 udgaver2008–11
FL12008
FL22009–11
FLHRC 1690 ABS2 udgaver2011–16
FL22011–13
FL32014–16
FLHRS 1584FL12007
FLHRSE3 1800FL12007
FLHRSE4 1800 ABSFL12008
FLHRSE5 1800 ABSFL22013
FLHRSE6 1800 ABSFL32014
FLHT 15842 udgaver2007–09
FL12007–08
FL22009
FLHT 1584 ABS2 udgaver2008–09
FL12008
FL22009
FLHTC 1584FL22007–11
FLHTC 1584 ABSFL22009–11
FLHTC 1690FL22012–13
FLHTC 1690 ABSFL22011–13
FLHTCU 15842 udgaver2007, 2009–11
FL12007
FL22009–11
FLHTCU 1584 ABS2 udgaver2008–11
FL12008
FL22009–11
FLHTCU 1690FL22012–13
FLHTCU 1690 ABS2 udgaver2012–16
FL22012–13
FL32014–16
FLHTCUL 1690 ABSFL32015–16
FLHTCUSE2 1800FL12007
FLHTCUSE3 1800 ABSFL12008
FLHTCUSE4 1800 ABSFL22009
FLHTCUSE5 1800 ABSFL22010
FLHTCUSE6 1800 ABSFL22011
FLHTCUSE7 1800 ABSFL22012
FLHTCUSE8 1800 ABSFL22013
FLHTCUTG 16902 udgaver2010–16
–2010–13
TG12014–16
FLHTK 1584 ABSFL22010–11
FLHTK 1690 ABS2 udgaver2011–16
FL22011–13
FL32014–16
FLHTKL 1690 ABSFL32015–16
FLHTKSE 1800 ABSFL32014–15
FLHX 15842 udgaver2007–11
FL12007–08
FL22009–11
FLHX 1584 ABS2 udgaver2008–11
FL12008
FL22009–11
FLHX 16902 udgaver2011–16
FL22011–13
FL32014–16
FLHX 1690 ABS2 udgaver2011–16
FL22011–13
FL32014–16
FLHXS 1690 ABSFL32014–16
FLHXSE2 1800 ABSFL22011
FLHXSE3 1800 ABSFL22012
FLHXSE 1800 ABS2 udgaver2010, 2015
FL22010
FL32015
FLHXXX 1690–2010–11
FLRT 1690–2015–16
FLS 1690FS22012–16
FLS 1690 ABSFS22012–16
FLSS 1800 ABSFS22016
FLSTC 1584FS22007–11
FLSTC 1584 ABSFS22011
FLSTC 1690FS22012–13
FLSTC 1690 ABSFS22012–16
FLSTF 1584FS22007–11
FLSTF 1584 ABSFS22011
FLSTF 1690FS22012–14
FLSTF 1690 ABSFS22012–16
FLSTFB 1584FS22010–11
FLSTFB 1584 ABSFS22011
FLSTFB 1690FS22012–13
FLSTFB 1690 ABSFS22012–16
FLSTFBS 1800 ABSFS22016
FLSTN 1584FS22007–11
FLSTN 1584 ABSFS22011
FLSTN 1690FS22012–13
FLSTN 1690 ABSFS22012–16
FLSTNSE 1800 ABSFS22014–15
FLSTSB 1584FS22008–11
FLSTSC 1584FS22007
FLSTSE2 1800FS22011
FLSTSE2 1800 ABSFS22011
FLSTSE3 1800 ABSFS22012
FLSTSE 1800FS22010
FLTR 1450–2003
FLTR 1584–2007–10
FLTR 1584 ABS–2009–10
FLTRSE3 1800 ABSFL22009
FLTRU 1584 ABS–2011
FLTRU 1690 ABS2 udgaver2011–13, 2016
FL22011–13
FL32016
FLTRUSE2 1800 ABSFL32015
FLTRUSE 1800 ABSFL22011
FLTRX 1584FL22010–11
FLTRX 1584 ABSFL22010–11
FLTRX 1690–2011–13, 2015–16
FLTRX 1690 ABS–2011–13, 2015–16
FLTRXS 1690 ABSFL32015–16
FLTRXSE2 1800 ABSFL22013
FLTRXSE 1800 ABSFL22012
FXCW 1584FS22008–09
FXCWC 1584FS22008–11
FXCWC 1584 ABSFS22011
FXD 1584–2007–10
FXDB 1584FD22007–13
FXDB 1584 ABSFD22012–13
FXDB 1690FD22014–16
FXDB 1690 ABSFD22014–16
FXDBC 1690FD22016
FXDBC 1690 ABSFD22016
FXDBI 1450 EFIFD22006
FXDBP 1690FD22016
FXDBP 1690 ABSFD22016
FXDC 1584FD22007–13
FXDC 1584 ABSFD22012–13
FXDC 1690FD22014
FXDC 1690 ABSFD22014
FXDCI 1450 EFIFD22006
FXDF 1584FD22008–11
FXDF 1584 ABSFD22012
FXDF 1690FD22012–16
FXDF 1690 ABSFD22012–16
FXDFSE2 1800FD22010
FXDFSE 1800FD22009
FXDI35 1450 EFIFD22006
FXDI 1450 EFIFD12006
FXDL 1584FD22007–09
FXDL 1690FD22014–16
FXDL 1690 ABSFD22014–16
FXDLI 1450 EFIFD22006
FXDLS 1800 ABSFD22016
FXDSE2 1800FD22008
FXDSE 1800FD22007
FXDWG 1584FD22007, 2010–11
FXDWG 1584 ABSFD22012
FXDWG 1690FD22012–13
FXDWG 1690 ABSFD22012–16
FXDWGI 1450 EFIFD22006
FXS 1584FS22011
FXS 1584 ABSFS22011–12
FXS 1690FS22012–13
FXS 1690 ABSFS22012–13
FXSB 1690FS22013
FXSB 1690 ABSFS22013–16
FXSBSE2 1800 ABSFS22014
FXSBSE 1800 ABSFS22013
FXST 1584FS22007
FXSTB 1584FS22007–09
FXSTC 1584FS22007–10
FXSTD 1584FS22007
FXSTSSE2 1800FS22008
FXSTSSE3 1800FS22009
FXSTSSE 1800FS22007
M58-varenummer
S&S CYCLE-33-5268
S&S Cycle varenummer
33-5268
Application
Exhaust| Intake
Exhaust close
20°
Exhaust duration
260°
Exhaust lift
0,585"
Exhaust lift at tdc
0,179"
Exhaust lobe centerline
110°
Exhaust open
60°
Grind
585 Series
Intake close
45°
Intake duration
245°
Intake lift
0,585"
Intake lift at tdc
0,186"
Intake lobe centerline
102,5°
Intake open
20°
Riding style
Street
Type
Gear
