Beskrivelse Passer til (202) Specifikationer

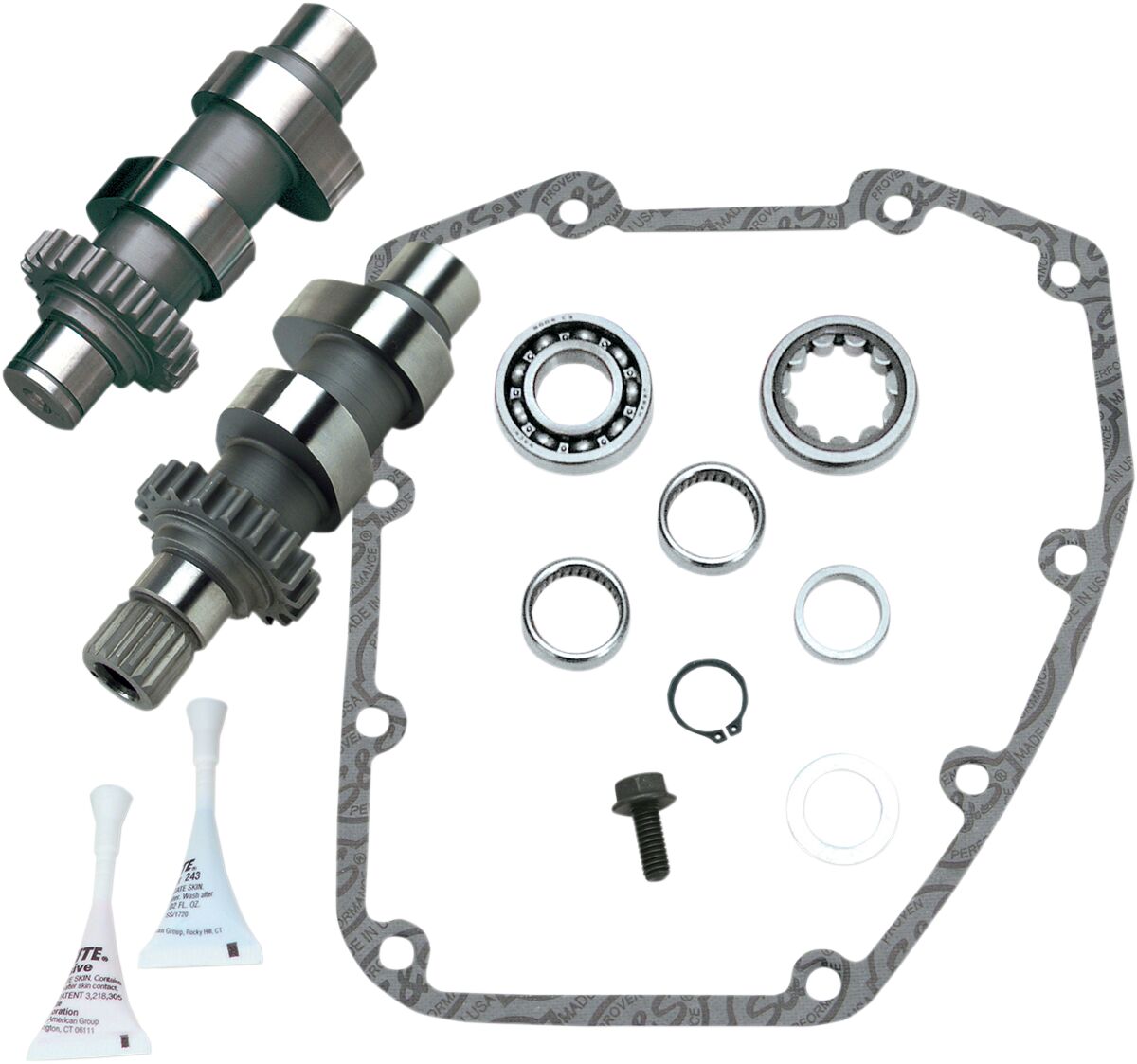

Beskrivelse fra leverandøren (engelsk) MR103 Cam Kit
'99 Twin cam requires a splined outer drive sprocket (sold seperately).
'06 requires high-lift valve springs.
Bolt-in camshaft for 103” engines with stock 8.7:1 compression ratio up to 10.5:1 compression ratio
Works with stock, un-ported heads, but is great for S&S CNC ported heads
More power across rpm range best results from 2500 rpm - 5500 rpm
Made in the USA
Installer must check coil bind, valve-to-valve clearance and valve-to-piston clearance.
A hydraulic press and other professional-level tools are required for installation.
S&S recommends that adjustable pushrod/covers be used.
Camshaft bearings and gaskets must be replaced when installing new camshafts.
Passer til 202 køretøjer · leverandørens egen angivelse
Harley Davidson 202 køretøjer · 48 modeller Model Typekode Årgang
FLHR 1450 2 udgaver 1999–2006 FLHRC 1450 FL1 2004 FLHRCI 1450 EFI 2 udgaver 1999–2006 FLHRI 1450 EFI 2 udgaver 1999–2000, 2003–06 – 1999–2000, 2003 FL1 2004–06 FLHRS 1450 – 2004–06 FLHRSI 1450 EFI FL1 2004–06 FLHT 1450 2 udgaver 1999–2006 FLHTC 1450 FL1 2002–05 FLHTCI 1450 EFI FL1 1999–2000, 2003–06 FLHTCUI 1450 EFI 2 udgaver 1999–2006 FLHTI 1450 EFI FL1 2004–06 FLHX 1450 – 2006 FLHXI 1450 EFI FL1 2006 FLST 1450 FS2 2006 FLSTC 1450 FS2 2000–06 FLSTCI 1450 EFI FS2 2001–06 FLSTF 1450 FS2 2000–06 FLSTFI 1450 EFI FS2 2001–06 FLSTI 1450 EFI FS2 2006 FLSTN 1450 FS2 2005–06 FLSTNI 1450 EFI FS2 2005–06 FLSTS 1450 FS2 2000–03 FLSTSC 1450 FS2 2005–06 FLSTSCI 1450 EFI FS2 2005–06 FLSTSI 1450 EFI FS2 2003 FLTR 1450 – 1999–2003 FLTRI 1450 EFI – 1999–2006 FXD 1450 2 udgaver 1999–2005 FXDC 1450 FD2 2005 FXDCI 1450 EFI FD1 2005 FXDI 1450 EFI FD1 2004–05 FXDL 1450 2 udgaver 1999–2005 FXDLI 1450 EFI FD1 2004–05 FXDWG2 1450 FD1 2001 FXDWG3 1450 FD1 2002 FXDWG 1450 2 udgaver 1999–2005 FXDWGI 1450 EFI FD1 2004–05 FXDX 1450 FD1 1999–2004 FXDXI 1450 EFI FD1 2004–05 FXDXT 1450 FD1 2001–03 FXST 1450 FS2 2000–06 FXSTB 1450 FS2 2000–06 FXSTBI 1450 EFI FS2 2003–06 FXSTD 1450 FS2 2000–06 FXSTDI 1450 EFI FS2 2001–06 FXSTI 1450 EFI FS2 2003–06 FXSTS 1450 FS2 2000–06 FXSTSI 1450 EFI FS2 2003–06
M58-varenummer S&S CYCLE-330-0456 S&S Cycle varenummer 330-0456 Application Exhaust| Intake Exhaust close 22° Exhaust duration 252° Exhaust lift 0,585" Exhaust lift at tdc 0,177" Exhaust lobe centerline 104° Exhaust open 50° Grind MR103 Intake close 33° Intake duration 226° Intake lift 0,585" Intake lift at tdc 0,172" Intake lobe centerline 100° Intake open 13° Riding style Street Type Chain
